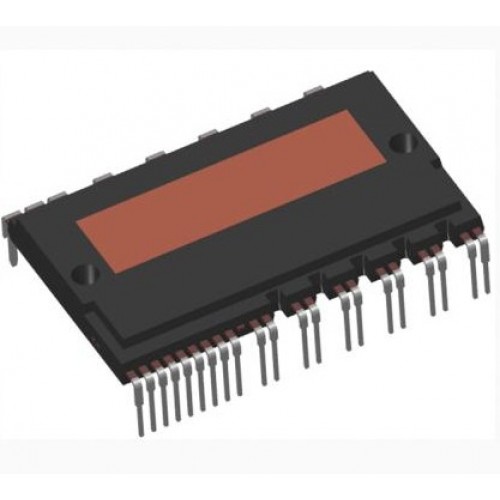

PSS20S71F6 IGBT Power Driver Modules

PSS20S71F6 IGBT Power Driver Modules

The PSS20S71F6 is an insulated-gate bipolar transistor (IGBT) module, which combines high efficiency and fast switching capabilities, typically used in power electronics applications such as inverters, motor drives, and power supplies. It is designed to handle significant power loads while offering excellent switching performance and energy efficiency. Application: Designed for use in industrial power applications, including motor control, inverters, and power conversion systems.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of  Module's.

• High Current Handling: Capable of managing large current flows, suitable for heavy-duty power applications.


• Low Saturation Voltage (V_CE(sat)): Offers low conduction losses, which enhances efficiency during operation.


• Fast Switching Speed: The IGBT technology provides high-speed switching, which reduces energy loss during switching events, making it efficient for high-frequency applications.


• Built-in Freewheeling Diodes: Integrated anti-parallel diodes for protection, which aids in reducing voltage spikes during inductive load switching.


• High Voltage Rating: Suitable for high-voltage applications with significant blocking voltage capability.


Specifications of PSS20S71F6 IGBT Power Driver Modules

• Collector-Emitter Voltage (V_CES): Typically in the range of 600V to 1200V.


• Current Rating (I_C): Rated for a high continuous collector current, generally around 20A or more.


• Insulation Voltage: High insulation voltage rating between terminals and heatsink.


• Switching Frequency: Optimized for medium to high switching frequencies (tens of kHz range).


• Package Type: Compact power module, designed for easy mounting and integration into power systems.


• Protection Features: Often includes built-in protection mechanisms such as overcurrent, overvoltage, and thermal protection.


Package Includes

• 1 x PSS20S71F6 IGBT Power Driver Modules
