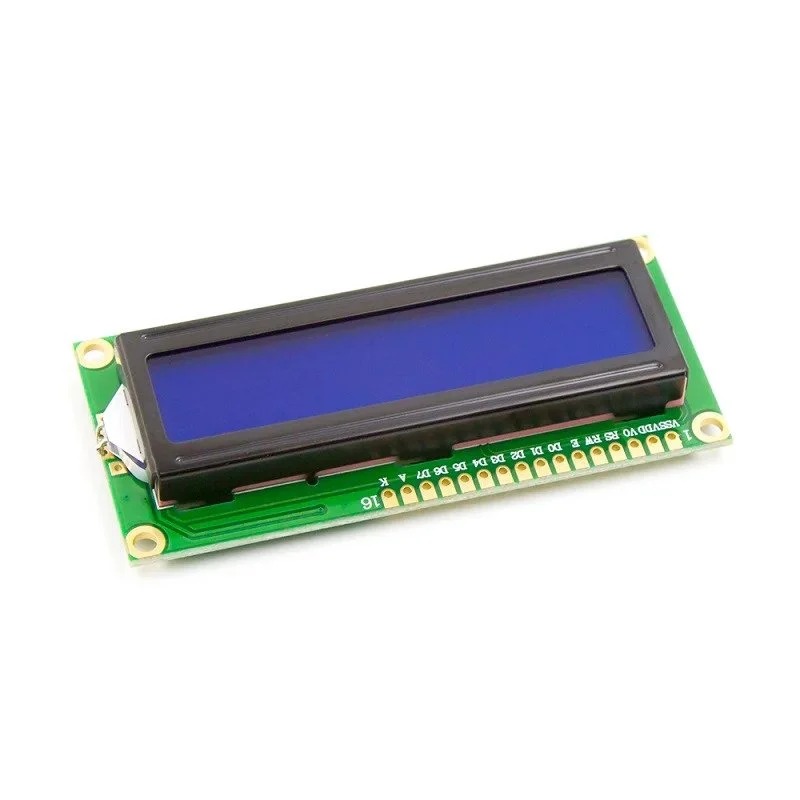

SDCB1602 Sinda 16x2 Blue LCD

   SDCB1602 Sinda 16x2 Blue LCD

The SDCB1602 is a 16x2 character LCD module manufactured by Sinda, designed for displaying alphanumeric characters. It's a popular choice for microcontroller-based projects due to its simplicity and ease of use. It can display 16 characters on two lines, making it ideal for applications where limited text output is required. It features a blue backlight, which provides a visually appealing contrast with white characters. This type of display is commonly used in embedded systems, control panels, and various DIY electronics projects.

DNA solutions, Nashik has various types of LCD's. Check out our complete collection of LCD's.

• Display Format: 16x2 characters (16 characters per line, 2 lines)

• Backlight: Blue LED backlight, providing good visibility in various lighting conditions

• Text Color: White characters on a blue background

• Controller: Typically equipped with an HD44780 or compatible controller, which is standard and widely supported by many microcontroller libraries

• Interface: Parallel interface (4-bit or 8-bit mode) for data communication, compatible with most microcontrollers (e.g., Arduino, Raspberry Pi)

• Custom Characters: Allows the creation of custom characters using the built-in CGRAM (Character Generator RAM)

• Contrast Adjustment: Contrast can be adjusted using an external potentiometer connected to the VO (contrast) pin

Specifications of SDCB1602 Sinda 16x2 Blue LCD

• Operating Voltage: 4.7V to 5.3V (typically 5V for logic and backlight)

• Operating Current: Typically around 1.5mA (without backlight) and around 15-20mA with the backlight on

• Character Size: Approximately 5.56mm x 2.95mm per character

• Dot Matrix: 5x8 dots per character

• Viewing Area: Approximately 64.5mm x 13.8mm

• Module Size: Approximately 80mm x 36mm x 12mm

• Operating Temperature: -20°C to +70°C (can vary depending on the model)

• Storage Temperature: -30°C to +80°C

Applications of SDCB1602 Sinda 16x2 Blue LCD

• DIY Electronics: Ideal for hobbyist projects, displaying sensor data, or simple user interfaces

• Embedded Systems: Used in microcontroller-based systems for providing textual output

• Control Panels: Common in industrial and consumer electronics for status displays


• Learning and Prototyping: Great for educational purposes, teaching students about interfacing and programming display

1 x SDCB1602 Sinda 16x2 Blue LCD
