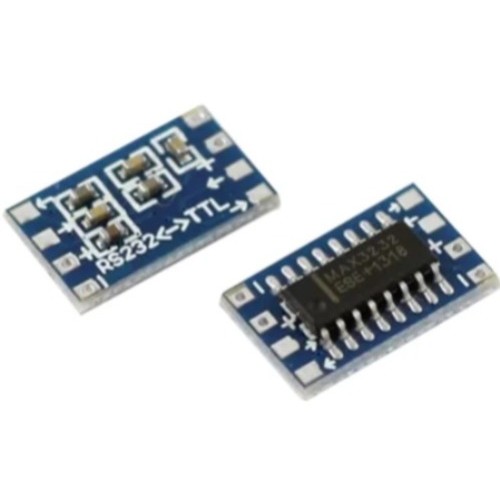

Serial Port Mini RS232 TO TTL Converter Adaptor Module MAX3232 Board

Serial Port Mini RS232 TO TTL Converter Adaptor Module MAX3232 Board

The Serial Port Mini RS232 to TTL Converter Adaptor Module Board MAX3232 for electrical level converter. The RS232 to TTL 5V Signal Converter Module is a professional module for projects requiring PC/Laptop RS232 interface to 5V TTL logic. This module converts signals between RS232 voltage levels and TTL voltage levels. It is bi-directional, where TTL signals are converted to RS232 levels and RS232 levels are converted to TTL levels. It is ideal for use in pc interfacing, microcontroller based projects, robotics, or for experimental and educational purposes.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of  Module's.

• High speed, replaceable MAX232 based. The device fitted supports up to 120kbps


• Supports microcontroller UARTs – 5V TTL signal levels.


• Single DC supply: wide input range for 4201 or 5V for 4202 and 4203


• Small PCB footprint of 50´40mm


• Low current status LED(s)


• Very low power consumption


• Optional onboard PSU for internal/external use for a quick start out of the box.


Applications of Serial Port Mini RS232 TO TTL Converter Adaptor Module MAX3232 Board

• Microcontroller interfacing: Connecting microcontrollers (Arduino, Raspberry Pi, etc.) to RS-232 devices like GPS modules, modems, and serial consoles.


• PC to Embedded System communication: Serial communication between PCs and embedded systems.


• Serial debugging: Useful for debugging microcontroller systems with RS-232 support.


• Legacy equipment interfacing: Connecting modern TTL-based systems to older RS-232 devices.


Package Includes

• 1 x Serial Port Mini RS232 TO TTL Converter Adaptor Module MAX3232 Board
