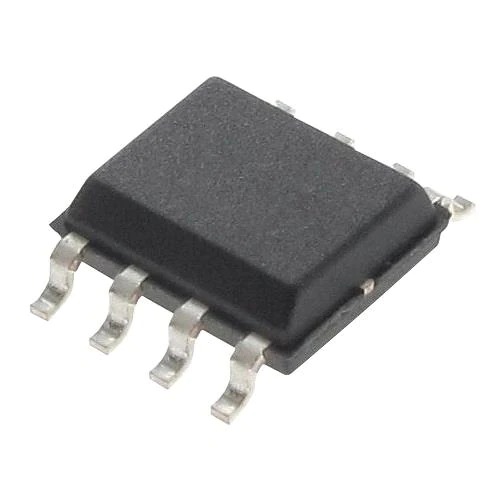

SI4942DY Dual N-Channel 40-V (D-S) MOSFET(SO-8) IC

SI4942DY Dual N-Channel 40-V (D-S) MOSFET(SO-8) IC

The SI4942DY is a dual N-channel MOSFET that features low on-resistance, high-speed switching, and high-current capability, making it ideal for high-efficiency power conversion and management applications. It can handle both low-voltage and high-current loads, making it versatile for a range of power electronics circuits. The MOSFET operates with logic-level gate drive, meaning it can be directly driven by typical microcontroller or logic circuits.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Dual N-channel MOSFET: Two MOSFETs in a single package, allowing for more compact designs.


• Low on-resistance: Ensures minimal power loss during operation, improving efficiency.


• Logic-level gate drive: Can be driven directly by 3.3V or 5V logic, simplifying control.


• High-speed switching: Enables efficient switching in power management and conversion applications.


• Compact SO-8 package: Space-efficient design, suitable for surface mounting on printed circuit boards.


Specifications of SI4942DY Dual N-Channel 40-V (D-S) MOSFET(SO-8) IC

• Drain-Source Voltage (V_DS): 30V (maximum).


• Gate-Source Voltage (V_GS): ±20V.


• Pulsed Drain Current (I_DM): 30A (maximum).


• Total Gate Charge (Q_g): 17 nC (typical).


• Turn-On Delay Time (t_d(on)): 9ns (typical).


• Turn-Off Delay Time (t_d(off)): 24ns (typical).


Package Includes

• 1 x SI4942DY Dual N-Channel 40-V (D-S) MOSFET(SO-8) IC
