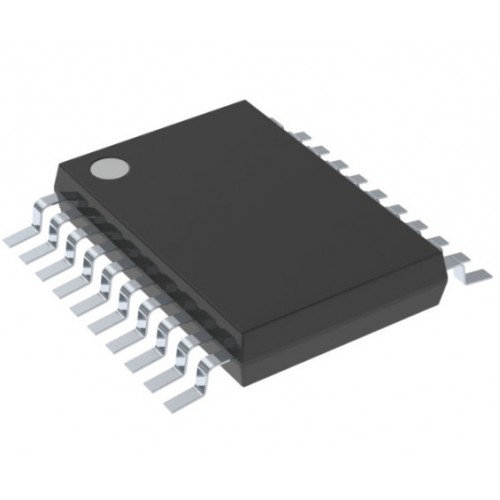

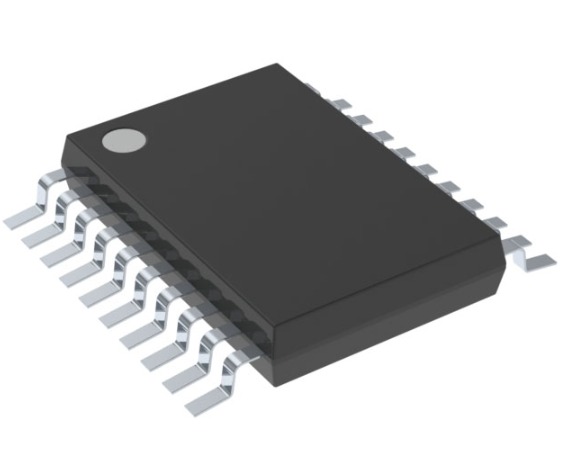

SN74HC373NSR D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SO

SN74HC373NSR D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SO

The SN74HC373NSR is an 8-bit transparent D-type latch that operates as a buffer for data storage and transfer. The device features high-speed CMOS technology and offers low power consumption. It is particularly designed for use in systems where high logic performance and robust signal driving are essential.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Voltage Range: Operates from 2V to 6V

• High Speed: Typical propagation delay ~20 ns

• Low Power: Minimal quiescent current and input leakage

• Tri-State Outputs: Supports high-impedance state for bus interfacing

• Latch Enable (LE) Control: Selects transparent or latched mode

Specifications of SN74HC373NSR D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SO

• Logic Family: High-Speed CMOS (HC)

• Channels: Single channel, 8-bit latch

• Package: 20-pin SOIC (Small Outline)

• Temperature Range: -40°C to +85°C

• Output Drive Capability: Supports standard TTL loads

Applications of SN74HC373NSR D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SO

• Data buffering in bus interface systems

• Address/data latching in microcontrollers and microprocessors

• Memory systems for address/data signal stability

• Digital signal processing and industrial control systems

• Consumer electronics and instrumentation

Package Includes

      1 x SN74HC373NSR D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SO
