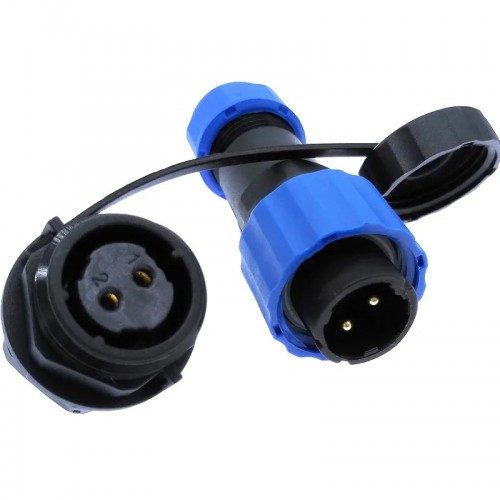

SP16 2PIN MALE/FEMALE  IP68 Waterproof Connector

SP16 2PIN MALE/FEMALE IP68 Waterproof Connector

The SP16 connector series is a line of multi-pin connectors with IP68-rated waterproof performance. The 2-pin version provides a secure connection for applications requiring two electrical contacts. The connectors are built from high-quality materials, ensuring durability and resistance to harsh environments.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of  Connector's.

• Waterproof and Dustproof: Rated to IP68, which means the connector is fully protected against dust ingress and can withstand immersion in water beyond 1 meter depth.

• Durable Construction: Made from high-quality engineering plastic and metal, providing good resistance to impacts, corrosion, and environmental elements.

• Secure Connection: Comes with a bayonet-style coupling mechanism that ensures a firm and secure connection between the plug and socket.

• Versatility: Suitable for a wide range of applications such as LED lighting, outdoor equipment, solar panels, electric vehicles, and industrial machinery.

• Temperature Range: Operates reliably in a wide temperature range, from -25°C to +85°C.

Specifications of SP16 2PIN MALE/FEMALE  IP68 Waterproof Connector

• Contact Number: 2 Pins


• Rated Current: 20A


• Rated Voltage: 250V AC


• Cable Diameter Range: 5.5mm to 9mm


• Material: Shell: High-strength engineering plastic


• Protection Level: IP68 when mated


• Connection Type: Soldering


• Coupling Method: Quick bayonet coupling


Package Includes

• 1 x SP16 2PIN MALE/FEMALE IP68 Waterproof Connector
