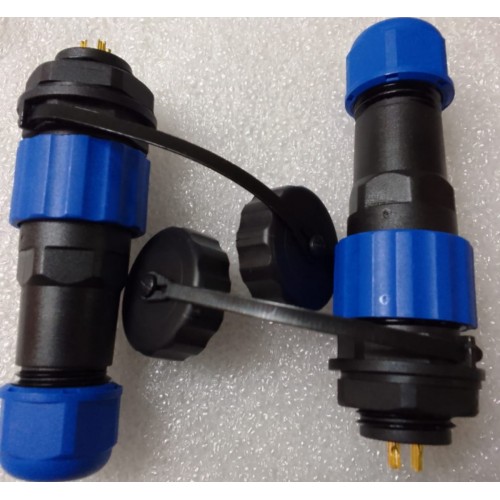

SP16 4PIN MALE/FEMALE IP68 Waterproof Connector

SP16 4PIN MALE/FEMALE IP68 Waterproof Connector

The SP16 series connectors are known for their robust and waterproof design. The 4-pin male and female versions of these connectors provide a dependable and secure solution for transmitting power or signals in challenging environments. With an IP68 rating, they offer complete protection against dust and prolonged immersion in water, making them ideal for outdoor use.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of  Connector's.

• IP68 Waterproof and Dustproof: Offers complete protection against dust ingress and can be submerged in water beyond 1 meter depth, ensuring reliable operation in wet and dusty environments.


• Durable Build: Constructed from high-strength engineering plastic and metal, providing excellent resistance to impacts, wear, and corrosion.


• Secure Connection: Features a quick and secure bayonet-style coupling mechanism that prevents accidental disconnection.


• Wide Range of Applications: Suitable for various applications, including industrial equipment, outdoor lighting, renewable energy systems, and marine electronics.


• Temperature Range: Operates effectively within a wide temperature range of -25°C to +85°C, ensuring reliability in diverse conditions.


Specifications of SP16 4PIN MALE/FEMALE IP68 Waterproof Connector

• Contact Number: 4 Pins (Male/Female)


• Rated Current: 10A


• Rated Voltage: 250V AC


• Contact Resistance: ≤ 5mΩ


• Insulation Resistance: ≥ 2000MΩ


• Cable Diameter Range: 5.5mm to 9mm


• Protection Level: IP68 (when mated)


• Connection Type: Soldering


Package Includes

• 1 x SP16 4PIN MALE/FEMALE IP68 Waterproof Connector
