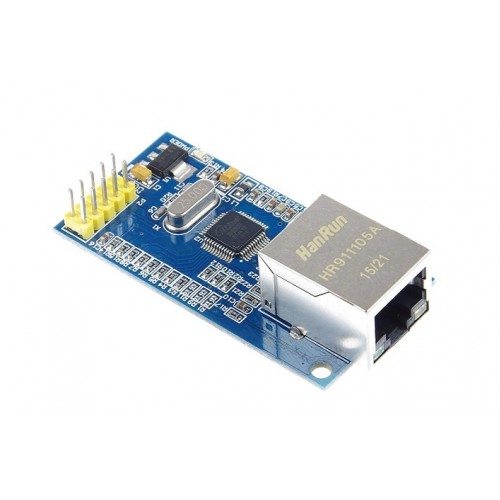

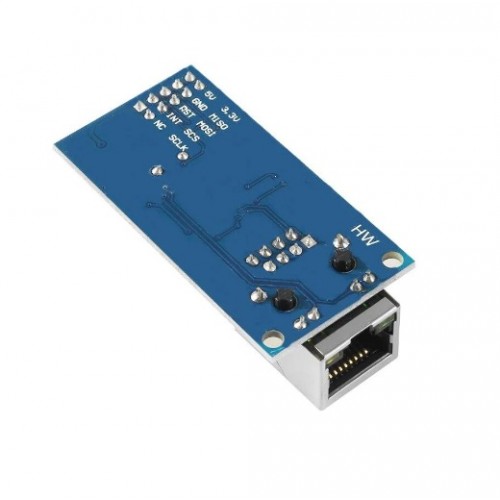

SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module

SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module

The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. W5500 enables users to have the Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC and PHY embedded. The SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module based on Ethernet WIZNET new type of chip W5500, module integrates the whole hardware TCP/IP protocol stack, no need code implements the TCP/IP protocol stack.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• 10BaseT/100BaseTX Ethernet PHY embedded

• Supports automatic response (full duplex/half duplex mode)

• Supports 8 independent sockets simultaneously

• Internal 32Kbytes Memory for Tx/Rx Buffers

• Power off mode: support

• Network wake: support

• SPI interface (SPI MODE 0, 3), convenient connection with MCU

Specifications of SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module

• Model Type: Ethernet Module

• Chip Type: W5500

• Input Voltage (V): 3.3 ~ 5

• Internal Memory (KByte): 32kbyte

Applications of SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module

• Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters

• Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc.

• Parallel-to-Ethernet: POS / Mini Printers, Copiers

• USB-to-Ethernet: Storage Devices, Network Printers

• GPIO-to-Ethernet: Home Network Sensors

• Security Systems: DVRs, Network Cameras, Kiosks

• Factory and Building Automation

• Medical Monitoring Equipment

• Embedded Servers

Package Includes

      1 x SPI to Ethernet Hardware TCP/IP W5500 Ethernet Network Module
