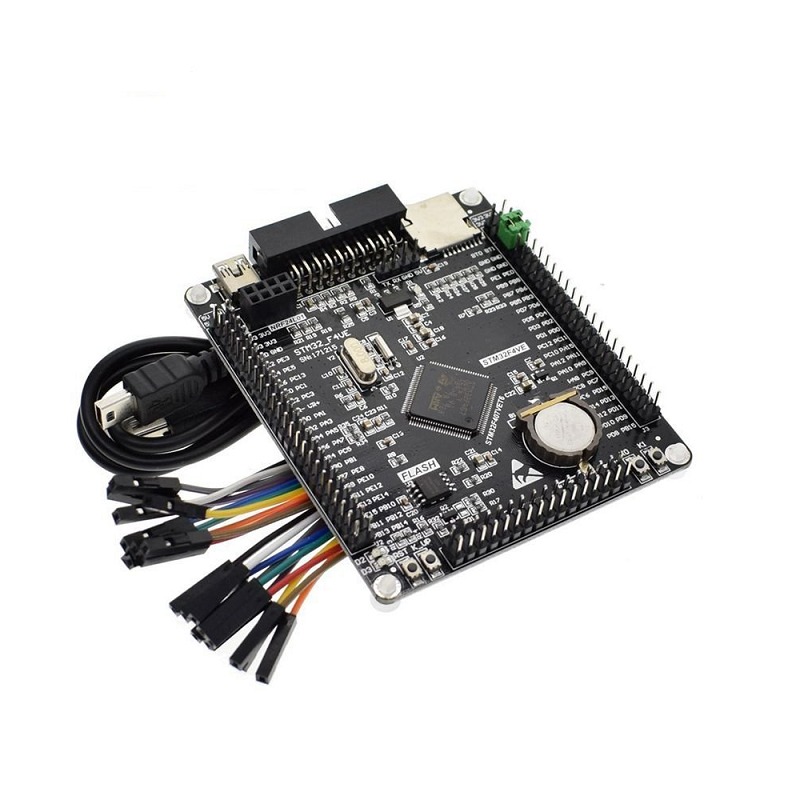

STM32F407VET6 Development Board Cortex

STM32F407VET6 Development Board Cortex

The STM32F405xx and STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz.The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types.It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.

DNA solutions, Nashik has various types of Development Boards. Check out our complete collection of Development Boards.

• Core: Ar 32-bit Cortex-M4 CPU with FPU


• LCD parallel interface, 8080/6800 modes


• 3×12-bit, 2.4 MSPS A/D converters


• 2×12-bit D/A converters


• General-purpose DMA


• Up to 140 I/O ports with interrupt capability


• Up to 17 timers


• Low-power operation


Package Includes

1 x STM32F407VET6 Development Board Cortex
