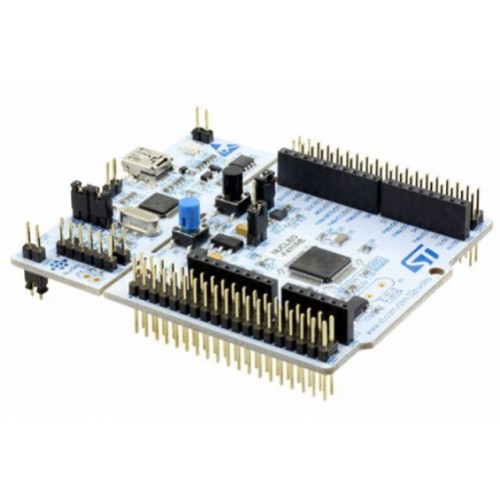

STM32F411RE Nucleo-64 Development Board Arduino/ST Morpho Connectivity

STM32F411RE Nucleo-64 Development Board Arduino/ST Morpho Connectivity

The STM32F411RE Nucleo-64 Development Board is an evaluation board based on the STM32F411RET6 microcontroller, a high-performance ARM® Cortex®-M4 32-bit RISC core. It supports Arduino Uno Rev3 and ST Morpho connectivity. The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode. The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

DNA solutions, Nashik has various types of Development Board's. Check out our complete collection of Development Board's.

• STM32 microcontroller

• 1 user LED shared with ARDUINO

• 1 user and 1 reset push-buttons

• 32.768KHz crystal oscillator

• Flexible power-supply options: ST-LINK, USB VBUS, or external sources

• On-board ST-LINK debugger/programmer with USB re-enumeration capability

Specifications of STM32F411RE Nucleo-64 Development Board Arduino/ST Morpho Connectivity

• Core: ARM Cortex-M4 with FPU, running at up to 100 MHz

• Flash Memory: 512 KB

• RAM: 128 KB

• Operating Voltage: 1.7 V to 3.6 V

• I/O Pins: Up to 50 GPIOs

• Timers: 10 timers (16-bit and 32-bit)

Package Includes

• 1 x STM32F411RE Nucleo-64 Development Board Arduino/ST Morpho Connectivity
