STP150N10F7 100V N-CHANNEL POWER MOSFET

STP150N10F7 100V N-CHANNEL POWER MOSFET

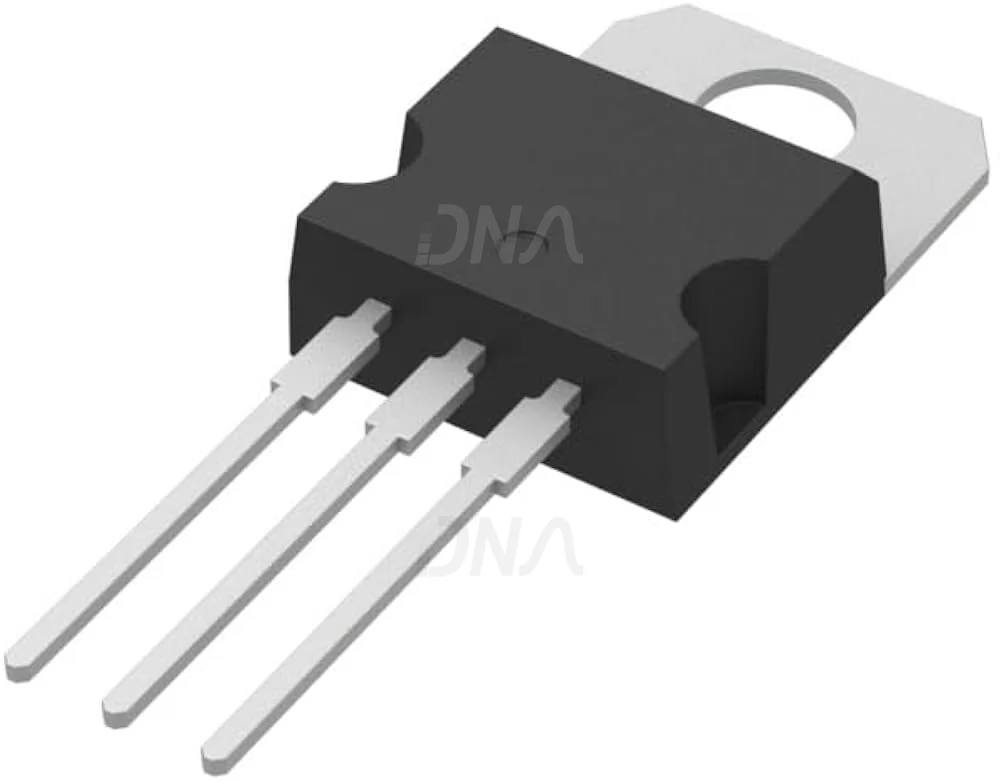

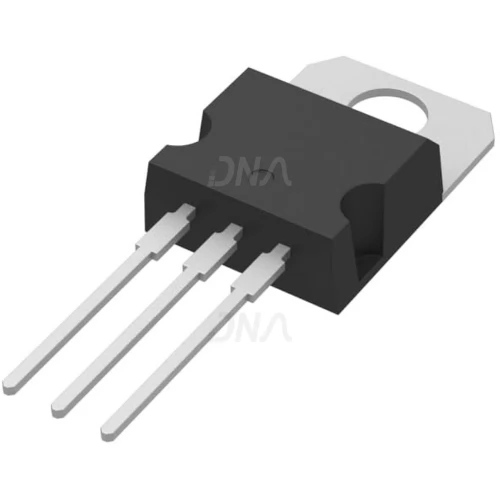

The STP150N10F7 is a 100V N-channel Power MOSFET designed for high-efficiency switching applications. This device is particularly suited for power management in systems such as DC-DC converters, motor drives, and industrial power supplies. It belongs to the MDmesh™ family, which offers superior performance in terms of efficiency and fast switching. The MOSFET is housed in a TO-220 package, making it ideal for through-hole mounting in power supply circuits, motor controllers, and other high-power electronics.

DNA solutions, Nashik has various types of MOSFET's. Check out our complete collection of  MOSFET's.

• Low Rds(on): Ensures minimal conduction losses, leading to better efficiency in high-current applications.


• High Current Capability: Can handle up to 120A of continuous drain current, making it suitable for high-power applications.


• Fast Switching Speed: Optimized for high-speed switching, which reduces switching losses.


• Low Gate Charge (Qg): Simplifies the design of driving circuits and enhances switching efficiency.


• 100V Drain-Source Voltage: Capable of handling moderate voltage levels, ideal for applications involving 100V systems.


• Enhanced Avalanche Ruggedness: Provides reliable performance under tough operating conditions, including voltage spikes.


Specifications of STP150N10F7 100V N-CHANNEL POWER MOSFET

• Vds (Drain-Source Voltage): 100V


• Id (Drain Current): 120A (continuous at 25°C)


• Rds(on) (On Resistance): 4.5 mΩ (max) at Vgs = 10V


• Vgs (Gate-Source Voltage): ±20V


• Total Gate Charge (Qg): 185nC (typical)


• Power Dissipation (Pd): 300W


Package Includes

• 1 x STP150N10F7 100V N-CHANNEL POWER MOSFET
