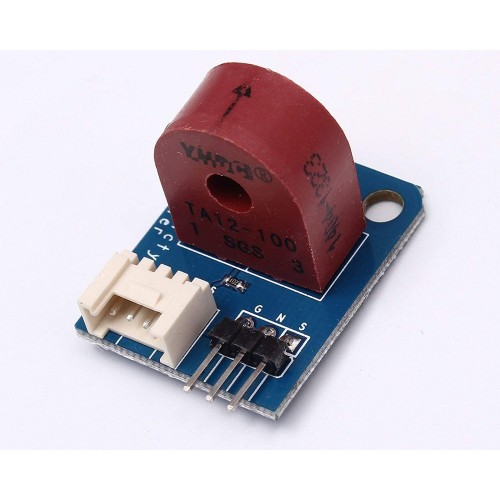

TA12-100 AC Current Sensor Module

TA12-100 AC Current Sensor Module

Electronic brick of electricity sensor is based on TA12-100 current transformer, which can transform AC signals of large current into small amplitude signals. The maximum current that can be detected can reach 5A, and the present current signal can be read via analog I/O port. What is an electronic brick? An electronic brick is an electronic module which can be assembled like Lego bricks simply by plugging in and pulling out. Compared to traditional universal boards and circuit modules assembled with various electronic components, electronic brick has standardized interfaces, plug and play, simplifying construction of prototype circuit on one’s own. There are many types of electronic bricks, and we provide more than twenty types with different functions including buttons, sensors, Bluetooth modules, etc, whose functions cover from sensor to motor drive, from Ethernet to wireless communication via Bluetooth, and so on. We will continue to add more types to meet the various needs of different projects.

DNA solutions, Nashik has various types of Modules's. Check out our complete collection of Modules's.

• Plug and play, easy to use. Compatible with the mainstream 2.54 interfaces and 4-Pin Grove interfaces in the market.

• With use of M4 standard fixed holes, compatible some Electronic project.

Specification of TA12-100 AC Current Sensor Module

• Compatible interfaces: 2.54 3-pin interface and 4-pin Grove interface(1)

• PCB size: 30.0mm X 24.0mm X 1.6mm

• Note 1: S for analog output port, G for ground, and N for not used pin.

Package Includes

1 x TA12-100 AC Current Sensor Module
