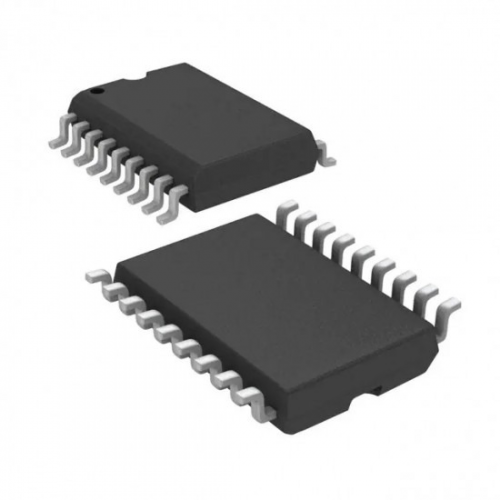

TBD62083AFWG,EL 8 Channel Sink Type DMOS Transistor Array SSOP-18 IC

TBD62083AFWG,EL 8 Channel Sink Type DMOS Transistor Array SSOP-18 IC

The TBD62083AFWG,EL is an 8-channel sink-type DMOS transistor array from Toshiba designed for interfacing logic circuits with higher-power devices. It is ideal for applications requiring high current drive capability in a compact SSOP-18 package. TB62083A series and TB62084A series are DMOS transistor array with 8 circuits. It has a clamp diode for switching inductive loads built-in in each output. Please be careful about thermal conditions during use. The TBD62083AFWG,EL features eight N-channel DMOS transistors with built-in Zener diodes for output clamping. The device can directly interface with logic-level signals, making it suitable for driving inductive loads such as relays, solenoids, and LEDs. It offers enhanced thermal and power handling capabilities while maintaining low power dissipation.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• High-Current Capability: Capable of sinking up to 500 mA per channel.

• Wide Operating Voltage: Handles up to 50V load voltage.

• Built-in Fly back Diodes: Integrated Zener diodes provide protection against back electromotive force (EMF) from inductive loads.

• Low Output Saturation Voltage: Ensures efficient operation with reduced power loss.

• Input Compatible with Logic Circuits: Operates with 3.3V and 5V logic levels.

• Compact Package: SSOP-18 (Shrink Small Outline Package) ensures a small footprint for PCB designs.

Specifications of TBD62083AFWG,EL 8 Channel Sink Type DMOS Transistor Array SSOP-18 IC

• Output Voltage (VOUT): 50V (maximum)

• Output Current (IOUT): 500mA per channel (maximum)

• Input Voltage (Output On): 2.5V (minimum)

• Input Voltage (Output Off): 0.6V (maximum)

• Operating Temperature Range: -40°C to +85°C

• Package Type: SSOP-18

Package Includes

      1 x TBD62083AFWG,EL 8 Channel Sink Type DMOS Transistor Array SSOP-18 IC
