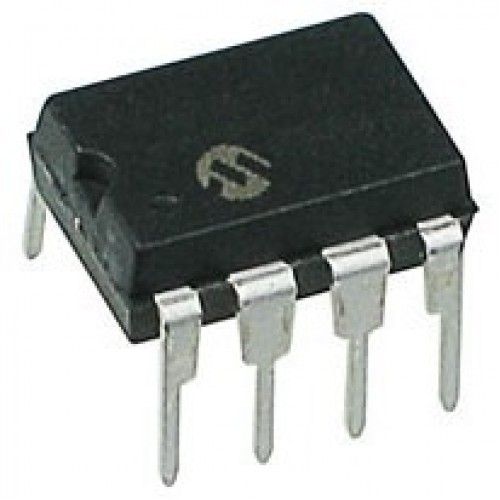

TC4426 High-Speed MOSFET Driver IC

TC4426 High-Speed MOSFET Driver IC

The TC4426 is an improved version of the MOSFET driver IC. It is highly latch-up resistant under any condition within their given power ratings. They are not subject to damage when up to 5V of the noise spiking on the ground pin. It can accept, without damage or logic upset, up to 500mA of reverse current (of either polarity) being forced into its outputs. All terminals are fully protected against electrostatic discharge up to 2.0kV.

DNA solutions, Nashik has various types of MOSFET IC's. Check out our complete collection of  MOSFET IC's.

• Wide range of voltage supply


• High peak output current


• High capacitive load drive capability


• Matched rise and fall time


• Low output impedance


• Can withstand a 0.5A reverse current


• Input withstands negative input up to 5.0V


Specifications of TC4426 High-Speed MOSFET Driver IC

• Peak output current: 1.5A


• Operating voltage range: 4.5V to 18V


• Capacitive load drive capability: 1000pF in 25ns (typical)


• Short delay time: 40ns


• Output impedance: 7 Ohm


• Latch-up protected: withstands a 0.5A reverse current


• Electrostatic discharge protected: 2.0Kv


• Temperature range: -65℃ to +150℃


• 1 x TC4426 High-Speed MOSFET Driver IC
