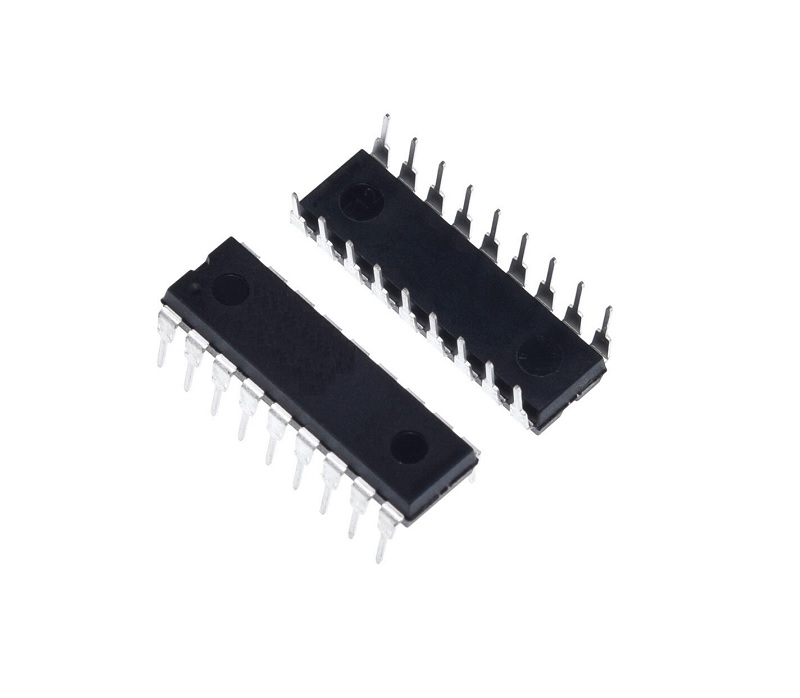

TBD62083APG 8channel sink type DMOS transistor array - DIP IC

TBD62083APG 8 channel sink type DMOS transistor array - DIP IC

The TBD62083APG is an 8-channel Darlington transistor array utilizing DMOS (Double-Diffused MOSFET) technology for switching and sinking currents. It is designed to handle high-voltage and high-current applications efficiently, providing a reliable interface between logic-level control signals and high-power loads. The device is provided in a compact DIP package for easy integration.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• High Voltage Tolerance

• High Current Capability

• Built-in Flyback Diodes

• TTL/CMOS Compatible Inputs

• Low Power Dissipation

• Compact DIP Package

• Built-in Clamp Diodes

Specifications of TBD62083APG 8channel sink type DMOS transistor array - DIP IC

• Electrical Characteristics:

1. Output Voltage (VCE): Up to 50V.
2. Output Current (Io): Up to 500mA per channel.
3. Input Voltage (VIH): 2.7V (minimum logic HIGH level).
4. Output Saturation Voltage (VCE(sat)): Typically 1.4V at 350mA.
5. Input Current (IIN): ~1mA per channel.

• Switching Characteristics:

1. Fast switching speed for efficient load driving.

• Thermal Characteristics:

1. Operating Temperature Range (Topr): -40°C to +85°C.
2. Power Dissipation (PD): ~1.47W.

• Package:

1. Type: DIP-18 (Dual Inline Package).
2. Pin configuration: 8 input pins, 8 output pins, one GND, and one COM pin.

Applications of TBD62083APG 8channel sink type DMOS transistor array - DIP IC

• Relay Drivers.

• LED Matrix/Display Drivers.

• Stepper Motor Drivers.

• Solenoid Drivers.

• Printer Head Actuation.

• General High-Current Switch Applications.

Package Includes

      1 x TBD62083APG 8channel sink type DMOS transistor array - DIP IC
