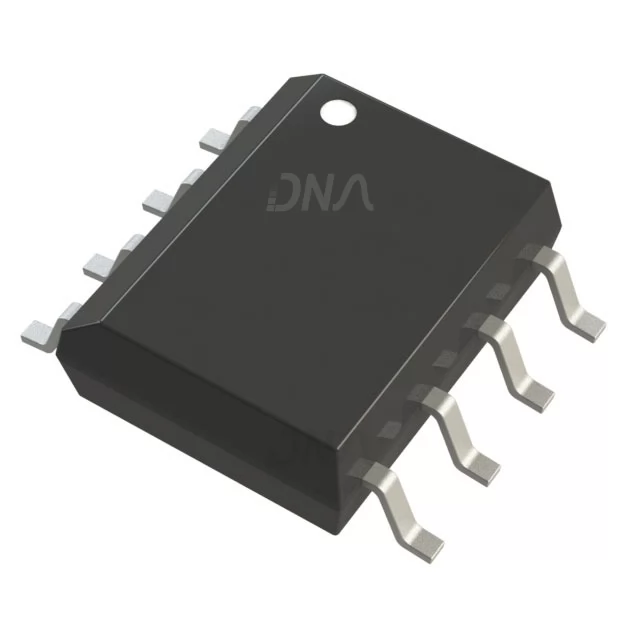

Product Images are shown for illustrative purposes only and may differ from actual product.
TEA18363T/1J NXP SMPS CONTROL SMD IC
- Stock: Out Of Stock NotInStock
- SKU: 7123 | DAH079
-
Rs.
174.88 (inc GST)
Rs.148.20 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
TEA18363T/1J NXP SMPS CONTROL SMD IC
TEA18363T/1J NXP SMD IC
The TEA18363T is a controller IC for low-cost Switched Mode Power Supplies (SMPS). It is intended for fly back topologies. The built-in green functions provide high efficiency at all power levels. At high power levels the fly back operates in Quasi-Resonant (QR) mode. At lower power levels, the controller switches to Frequency Reduction (FR) or Discontinuous Conduction Mode (DCM) and limits the peak current to approximately 25 % of the maximum peak current. Valley switching is used in all operating modes.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of TEA18363T/1J NXP SMD IC
- SMPS controller IC for low-cost applications
- Large supply voltage range (up to 30 V)
- Integrated high-voltage start-up
- Continuous VCC regulation during start-up and protection via the HV pin, allowing a minimum VCC capacitor value
- Reduced op to current in burst mode enabling low no load power consumption
- Operating frequencies in all operating modes are outside the audible area
- Integrated X-capacitor discharge; NXP Semiconductors patented (Patent reference: 81512184EP01 (Patent pending))
- Adjustable soft start
Specifications of TEA18363T/1J NXP SMD IC
- Mains voltage independent Over Power Protection (OPP)
- Over Temperature Protection (OTP)
- Integrated overpower time-out
- Integrated restart timer for system fault conditions
- Continuous mode protection using demagnetization detection
- Accurate Over Voltage Protection (OVP)
- Driver maximum on-time protection
Package Includes
1 x TEA18363T/1J NXP SMD IC
