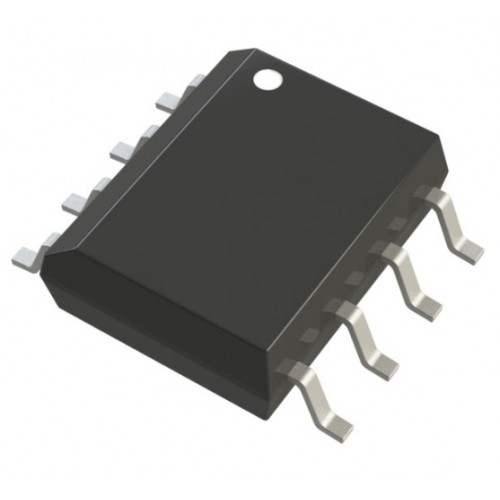

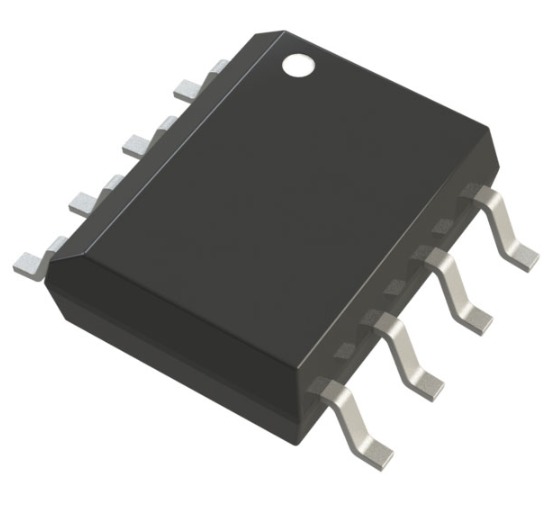

TEA19162T/2J PFC CONTROLLER IC

TEA19162T/2J PFC CONTROLLER IC

The TEA19162T/2J is a high-efficiency, digital PFC controller designed for use in medium to high-power applications. It implements critical conduction mode (CRM) and discontinuous conduction mode (DCM) for power factor correction, providing excellent performance over a wide input voltage and load range. This IC is particularly suitable for improving efficiency in systems requiring high power factor and low total harmonic distortion (THD).

DNA solutions, Nashik has various types of Controller IC. Check out our complete collection of Controller IC.

• High Power Factor and Low THD: Provides compliance with international power quality standards like IEC 61000-3-2

• High Efficiency: Low conduction and switching losses due to optimized control techniques

• Integrated Protections: Comprehensive protection mechanisms ensure safe and reliable operation

• Ease of Design: Simplified control loop design minimizes external components, reducing BOM costs

• Wide Input Range: Suitable for universal AC mains voltage operation (85 V to 265 V)

Specifications of TEA19162T/2J PFC CONTROLLER IC

• Supply voltage range: 11 V to 30 V

• Startup supply current: Low startup current (< 75 µA typical)

• Control Modes: Critical Conduction Mode (CRM) & Discontinuous Conduction Mode (DCM)

• Switching Frequency: up to 300 kHz

• Output Power Range: Designed for applications in the 50 W to several kilowatts range

Applications of TEA19162T/2J PFC CONTROLLER IC

• LED drivers

• Desktop and laptop adapters

• Gaming consoles

• High-efficiency SMPS

• Compliant power supplies for medical-grade applications

• Electric vehicle (EV) chargers

Package Includes

      1 x TEA19162T/2J PFC CONTROLLER IC
