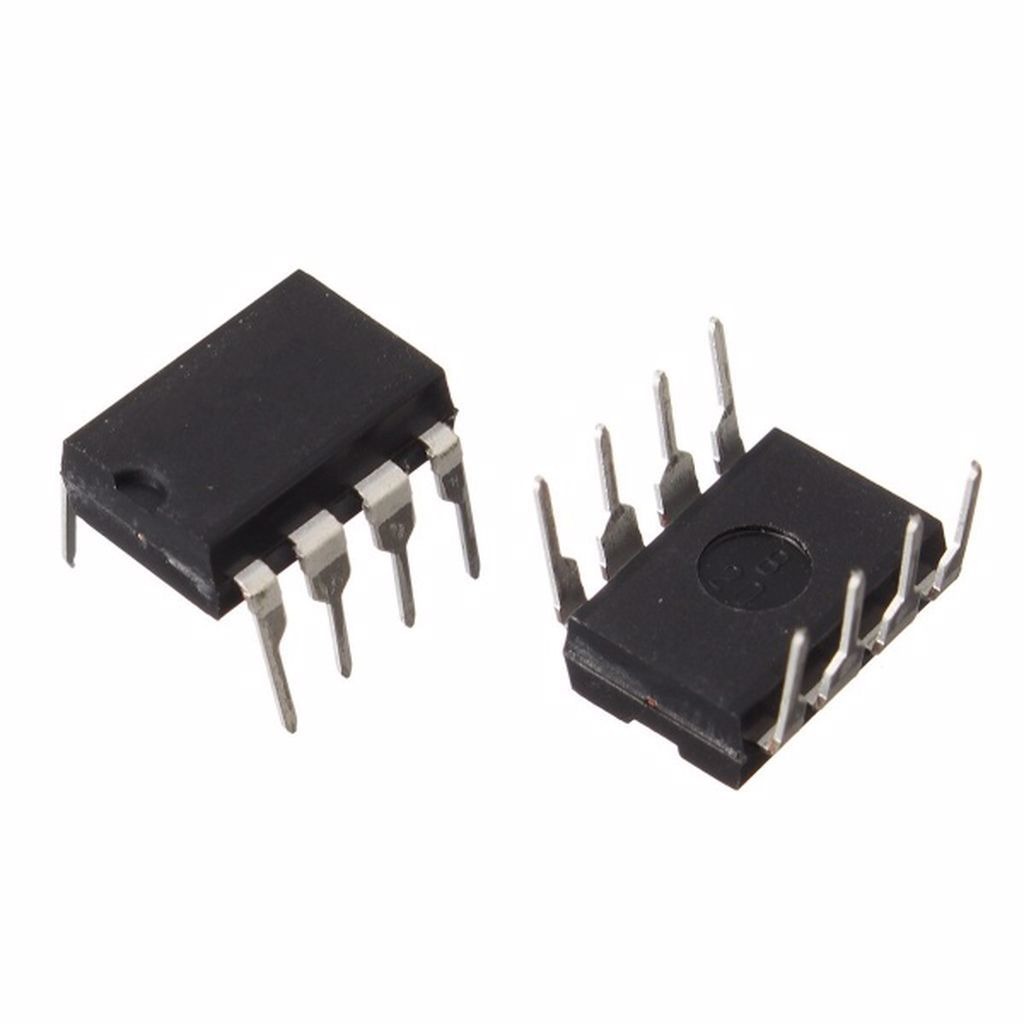

THX203H Current mode PWM switching controller DIP8 IC

THX203H Current mode PWM switching controller DIP8 IC

PWM controller of high-performance current mode is specially designed for AC/DC transformer with high performance and price ratio, which supplies continuous output power of 12W within the range of wide-voltage between 85V and 265V, the output power of peak value can be up to 18W. The combination of optimized reasonable circuit design and bipolar facture technology with high performance and price ratio economizes the whole cost ultimately. The power controller can be applied to the typical fly back circuit topology so as to form a simple AC/DC transformer.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Set-in high-voltage power switch tube of 700V and few peripheral components


• With the modulation of lock pulse width, the testing is according to the pulse limit current.


• With the function of output frequency reduction, the non-output power consumption can be less than 0.3W.


• Inner-built ramp and anti-feedback compensation function


• The independent upper-limit current testing controller deals with over-current and over-load of the controller real-timely.


• The period emission pole is turned off and it outputs by deflected voltage, and the pressure resistance of the power tube is improved.


Specifications of THX203H Current mode PWM switching controller DIP8 IC

• Input Voltage: Wide Range Input: 85V to 265V AC (suitable for universal input applications)


• Output Power: Maximum Output Power: Up to 5W


• Switching Frequency: Typical Switching Frequency: 65kHz (fixed)


• MOSFET Parameters: Integrated High-Voltage MOSFET


• Primary-Side Regulation (PSR): Eliminates the need for an optocoupler, reducing component count.


Package Includes

• 1 x THX203H Current mode PWM switching controller DIP8 IC
