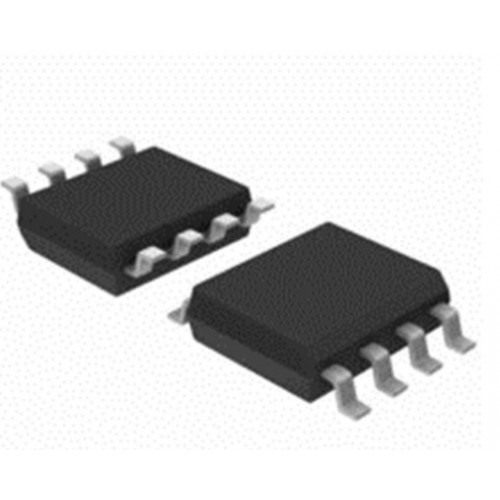

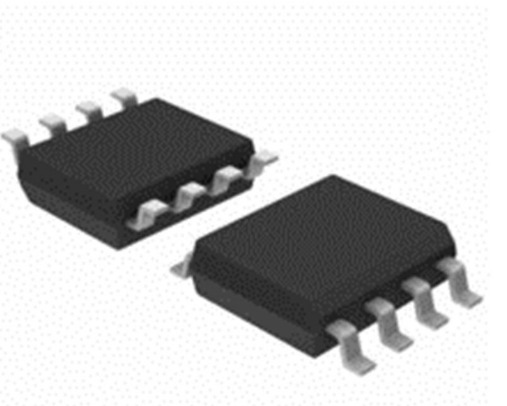

TL072 Low Noise JFET Input Operational Amplifier IC

TL072 Low Noise JFET Input Operational Amplifier IC

The TL072 Low Noise JFET-input operational amplifiers in the TL072 series are similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL072 series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip. The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized for operation from −40°C to 85°C.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Low Power Consumption


• Wide Common-Mode and Differential Voltage Ranges


• Low Input Bias and Offset Currents


• Output Short-Circuit Protection


• High Input Impedance. . . JFET Input Stage


• Internal Frequency Compensation


• Latch-Up-Free Operation


• High Slew Rate. . . 13 V/μs Typ


• Common-Mode Input Voltage Range Includes VCC+


Specifications of TL072 Low Noise JFET Input Operational Amplifier IC

• Input Type: JFET (high input impedance, low bias current)


• Number of Amplifiers: 2 (dual op-amp)


• Supply Voltage Range: ±3V to ±18V (dual supply) or 6V to 36V (single supply)


• Input Offset Voltage: Typically 3mV, maximum 10mV


• Input Bias Current: Typically 65pA


Package Includes

• 1 x TL072 Low Noise JFET Input Operational Amplifier IC
