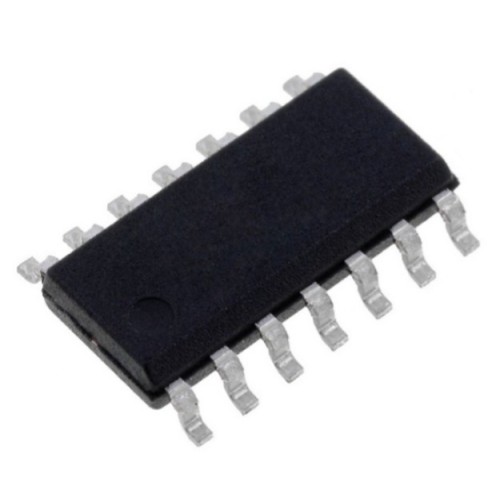

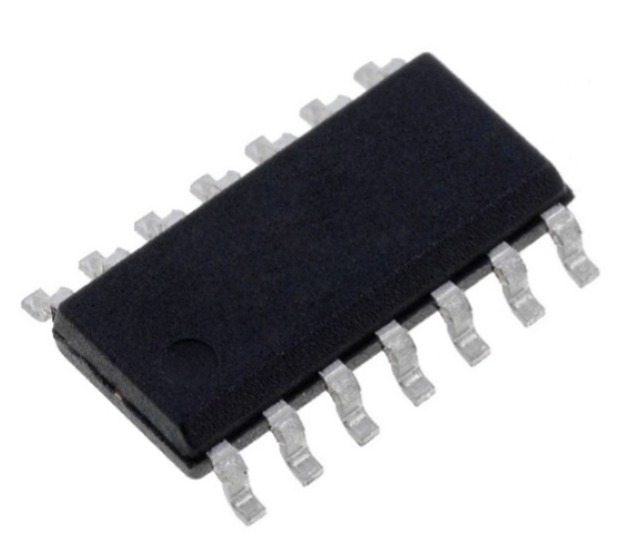

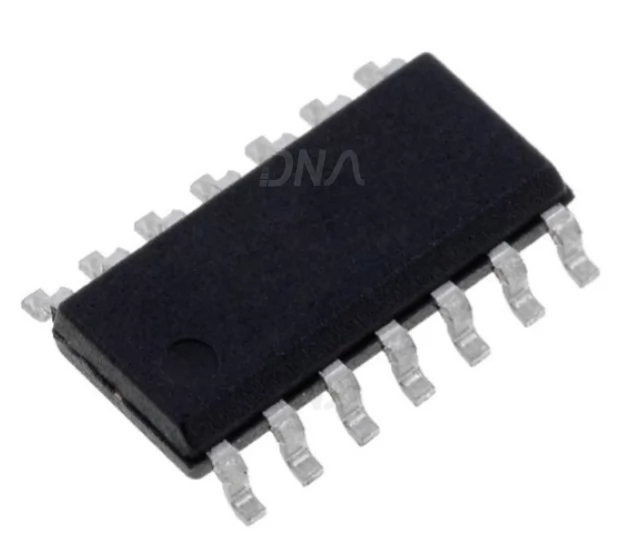

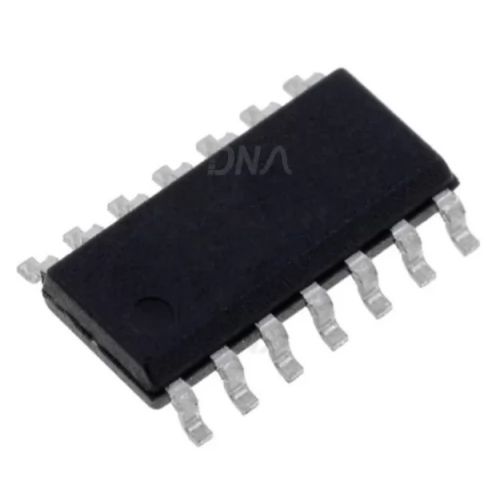

TL074 Low-Noise JFET Quad Operational Amplifier IC

TL074 Low-Noise JFET Quad Operational Amplifier IC

The TL074 are high-speed JFET input single operational amplifiers. Each of these JFET input operational amplifiers incorporates well matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Wide common-mode (up to VCC+) and differential voltage range


• Low input bias and offset current


• Low noise en = 15 nV/ √Hz (typ)


• Output short-circuit protection


• High input impedance JFET input stage


• Low harmonic distortion: 0.01% (typical)


• Internal frequency compensation


Specifications of TL074 Low-Noise JFET Quad Operational Amplifier IC

• Input Type: JFET (low bias current, high input impedance)


• Number of Amplifiers: 4 (quad op-amp)


• Supply Voltage Range: ±3V to ±18V (dual supply) or 6V to 36V (single supply)


• Input Offset Voltage: Typically 3mV, maximum 10mV


• Input Bias Current: Typically 65pA

• Quiescent Current (per amplifier): 1.4mA (low power consumption)


Package Includes

• 1 x TL074 Low-Noise JFET Quad Operational Amplifier IC
