  • TL431 Adjustable Precision Shunt Voltage Regulator

Product Images are shown for illustrative purposes only and may differ from actual product.

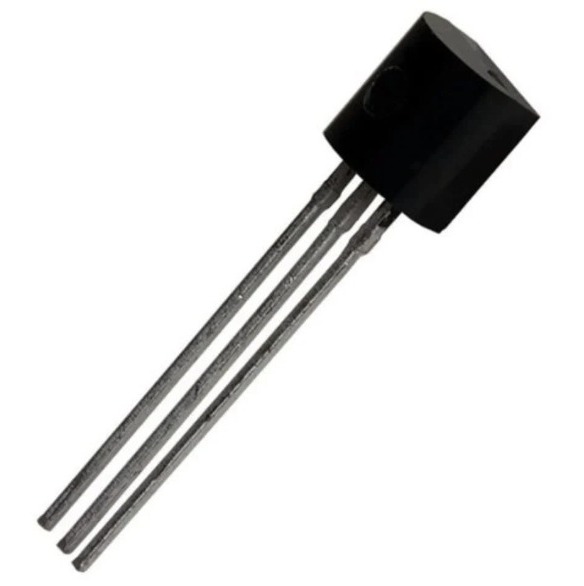

TL431 Adjustable Precision Shunt Voltage Regulator


Write a review | 0 reviews

  • Stock: 5
  • SKU: 8128 | DAF239
  • Rs. 5.10 (inc GST)
    Rs.4.32 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TL431 Adjustable Precision Shunt Voltage Regulator

TL431 Adjustable Precision Shunt Voltage Regulator

The TL431 is a three-terminal adjustable shunt regulator with a precision reference voltage. It can be programmed to regulate voltages from 2.5V to 36V by using an external resistor divider. Its versatility, high stability, and ease of use make it a standard component in electronics.

DNA solutions, Nashik has various types of Regulators. Check out our complete collection of Regulators.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TL431 Adjustable Precision Shunt Voltage Regulator

  • Programmable output voltage via external resistor divider
  • High precision reference voltage
  • Low temperature coefficient
  • Wide operating voltage and current range
  • Low output noise and dynamic impedance
  • Stable over a broad temperature range

Specifications of TL431 Adjustable Precision Shunt Voltage Regulator

  • Reference Voltage (Vref): 2.495V (typical)
  • Adjustable Output Voltage Range: 2.5V to 36V
  • Dynamic Output Impedance: 0.2Ω
  • Temperature Range:
  • Operating: -40°C to +125°C
  • Package Options: TO-92, SOT-23, SOIC-8, etc

Applications of TL431 Adjustable Precision Shunt Voltage Regulator

  • Voltage Reference
  • Shunt Regulator
  • Switching Power Supplies
  • Overvoltage Protection
  • Battery Chargers

    Package Includes

          1 x TL431 Adjustable Precision Shunt Voltage Regulator

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
