TM1628 SMD IC

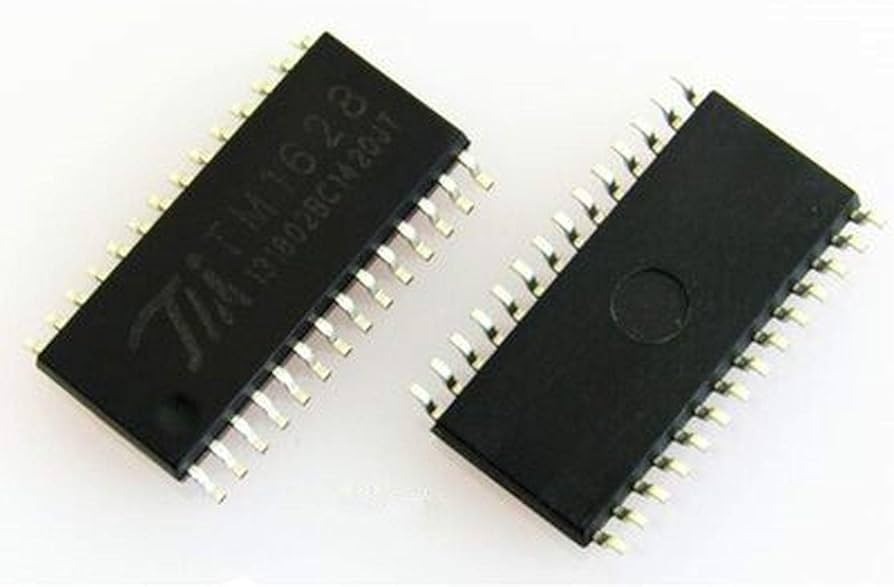

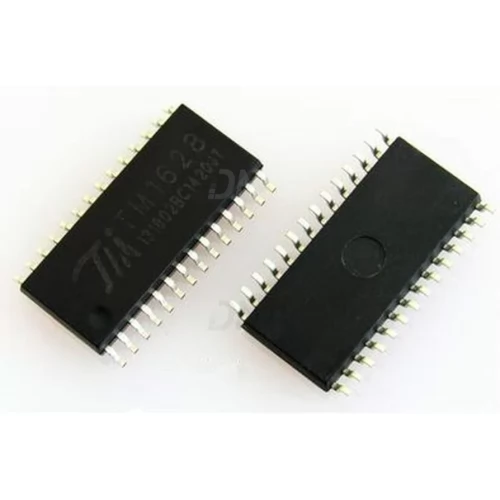

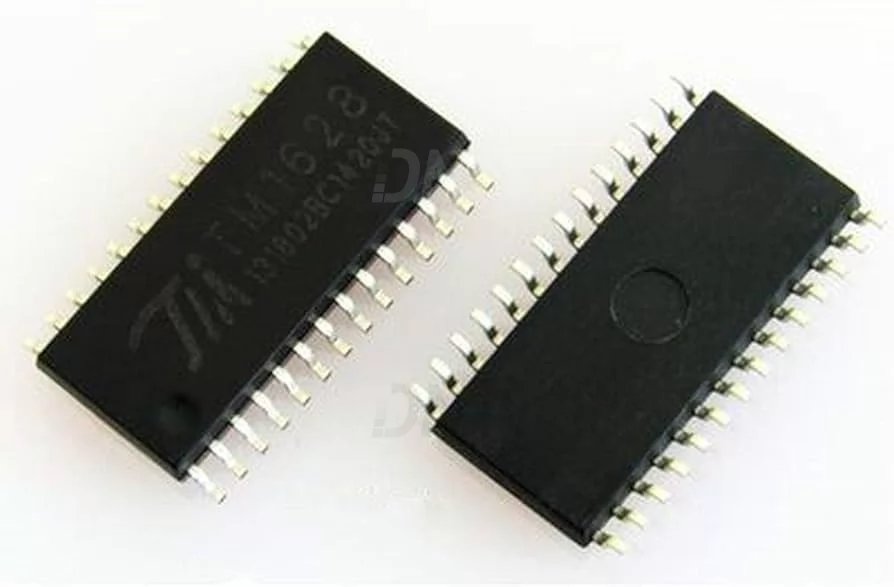

TM1628  7 Digit Seven Segment Display Driver - 8x2 Key scan - I2C/ TWI Interface - SOIC28 IC

TM1628 is an LED Controller driven on a 1/7 to 1/8 duty factor. Eleven segment output lines, six grid output lines, 1 segment/grid output lines, one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to TM1628 via a three-line serial interface. Housed in a 28-pin SO Package, TM1628 pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• MOS Technology


• Low Power Consumption


• Multiple Display Modes (12 segment, 6 Grid to 11 segment, 7 Grid)


• Key Scanning (8 x 2 Matrix)


• 8-Step Dimming Circuitry


• Serial Interface for Clock, Data Input/Output, Strobe Pins


• Available in 28-pin, SOP Package


Specifications of TM1628  7 Digit Seven Segment Display Driver - 8x2 Key scan - I2C/ TWI Interface - SOIC28 IC

• Advance technology


• Supply voltage : 5V to 7V


• Logic input voltage : -0.5 to VD D + 0.5


• Logic supply voltage : 4.5V to 5.5V


• Low power consumption


• Multi-display modes


• Key scanning (8 x 2 matrix)


Package Includes

• 1 x TM1628  7 Digit Seven Segment Display Driver - 8x2 Key scan - I2C/ TWI Interface - SOIC28 IC
