TOP248YN AC to DC offline Switching Converter IC

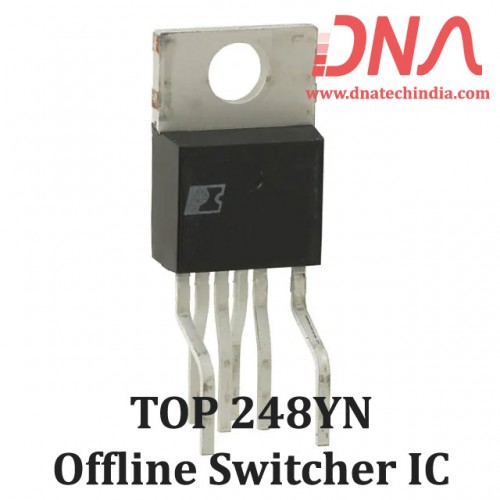

TOP248YN AC to DC Off-Line PWM Switch IC used in SMPS & Adapter

TOP248YN IC is a TOPSwitch-GX series which uses the same proven topology as TOPSwitch, cost effectively integrating the high voltage power MOSFET,PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new functions are integrated to reduce system cost and improve design flexibility, performance and energy efficiency.

Depending on package type, either 1 or 3 additional pins over the TOPSwitch standard DRAIN, SOURCE and CONTROL terminals allow the following functions: line sensing (OV/UV, line feed-forward/DCMAX reduction), accurate externally set current limit, remote ON/OFF, synchronization to an external lower frequency, and frequency selection (132 kHz/66 kHz).All package types of TOP248YN offline switcher IC provide the following transparent features: Soft-start, 132 kHz switching frequency (automatically reduced at light load), frequency jittering for lower EMI, wider DCMAX, hysteretic thermal shutdown, and larger creepage packages. In addition, all critical parameters (i.e. current limit, frequency, PWM gain) have tighter temperature and absolute tolerances to simplify design and optimize system cost.

TOP248YN AC-DC offline Switcher IC is an integrated switched mode power supply chip that converts a current at the control input to a duty cycle at the open drain output of a high voltage power MOSFET. During normal operation the duty cycle of the power MOSFET decreases linearly with increasing CONTROL pin current.

DNA Solutions deals in retail and bulk quantity. We have various values of AC/DC Switching converter IC's. Check our complete collection of AC DC converter and offline Switcher IC's.

Features of TOP248YN offline switcher IC

Package Includes

1 x TOP248YN AC-DC Offline Switcher IC
