Tsl235r Light To Frequency Converter

Tsl235r Light To Frequency Converter

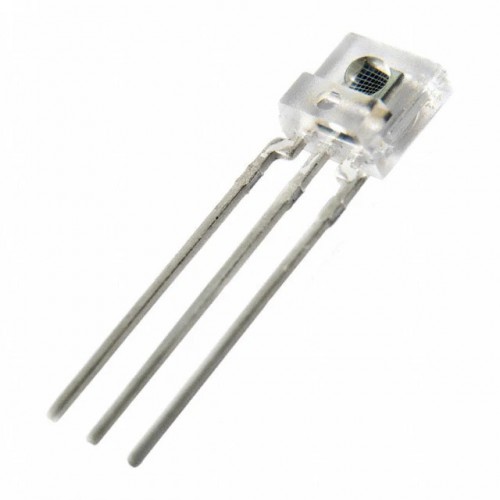

The TSL235R light-to-frequency converter combines a silicon photo diode and a current-to-frequency converter on a single  monolithic CMOS integrated circuit. Output is a square wave(50% duty cycle with frequency directly proportional to light intensity (irradiance) on the photodiode. The digital output allows direct interface to a microcontroller or other logic circuitry. The device has been temperature compensated for the ultraviolet-to-visible light range of 320nm to 700nm and responds over the light range of 320nm to 1050nm. The TSL235R is characterized for operation over the temperature range of -25°C to 70°C and is supplied in a 3-lead clear plastic side-looker package with an integral lens.

DNA solutions, Nashik has various types of Frequency Converter's. Check out our complete collection of  Frequency Converter's.

• High-Resolution Conversion of Light Intensity to Frequency With No External Components


• Communicates Directly With a Microcontroller


• Compact Three-Leaded Clear-Plastic Package


• Single-Supply Operation Down to 2.7 V


• Nonlinearity Error Typically 0.2% at 100 kHz


• Stable 150 ppm/°C Temperature Coefficient


• Single-Supply Operation


Specifications of Tsl235r Light To Frequency Converter

• Type: Light-to-Frequency Converter

• Package: 3-pin TO-92 or surface-mount package

• Spectral Response Range: 320 nm to 1050 nm

• Peak Sensitivity Wavelength: 700 nm (near-infrared)

• Package Type: TO-92 (standard 3-pin transistor-like package) or surface-mount SMD

1 x Tsl235r Light To Frequency Converter
