• UCN5815A BiMOS II 8-BIT LATCHED SOURCE DRIVERS IC

Product Images are shown for illustrative purposes only and may differ from actual product.

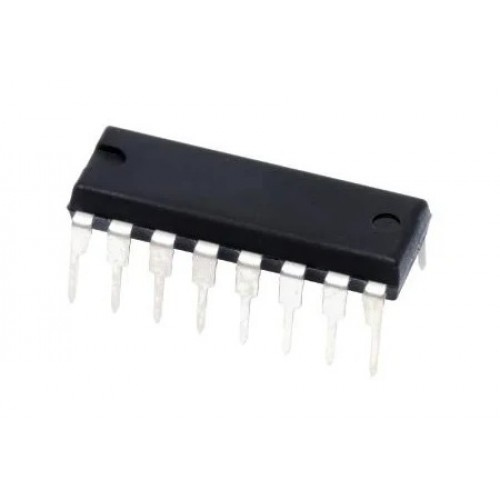

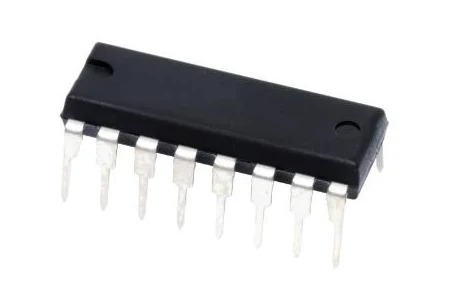

UCN5815A BiMOS II 8-BIT LATCHED SOURCE DRIVERS IC

  • Stock: Out Of Stock
  • SKU: 7614 | DAH452
  • Rs. 322.14 (inc GST)
    Rs.273.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

UCN5815A BiMOS II 8-BIT LATCHED SOURCE DRIVERS IC

UCN5815A BiMOS II 8-BIT LATCHED SOURCE DRIVERS IC

The UCN5815A BiMOS II 8-BIT LATCHED Designed primarily for use with high-voltage vacuum-fluorescent displays, the UCN5815A and UCN5815EP BiMOS II integrated circuits consist of eight npn Darlington source drivers with output pulldown resistors, a CMOS latch for each driver, and common STROBE, BLANKING, and ENABLE functions. BiMOS II devices have considerably better data-input rates than the original BiMOS circuits. With a 5 V logic supply, they will operate to at least 4.4 MHz. With a 12 V supply, significantly higher speeds are obtained. The CMOS inputs cause minimum loading and are compatible with standard CMOS and NMOS logic commonly found in microprocessor designs. TTL circuits may require the use of appropriate pull-up resistors.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of UCN5815A BiMOS II 8-BIT LATCHED SOURCE DRIVERS IC

  • To 4.4 MHz Date-lnput Rate
  • High-Voltage Source Outputs
  • CMOS, NMOS, TTL Compatible Inputs
  • Low-Power CMOS Latches
  • Internal Pull-Down Resistors
  • Wide Supply-Voltage Range

Specifications of UCN5815A BiMOS II 8-BIT LATCHED SOURCE DRIVERS IC

  • Supply Voltage (VDD): Typically 5V
  • Output Voltage (VOUT): Up to 80V
  • Output Current (IOUT): Up to 500mA per channel
  • Logic Levels: TTL and CMOS compatible
  • Input Data Frequency: Typically up to 3 MHz for fast switching
  • Operating Temperature Range: -20°C to +85°C

    Package Includes

    •  1 x UCN5815A BiMOS II 8-BIT LATCHED SOURCE DRIVERS IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited

    Reviews (0)

    Write a review

    Note: HTML is not translated!
        Bad           Good
