VFC110AP HIGH FREQUENCY VOLTAGE TO FREQUENCY CONVERTER IC

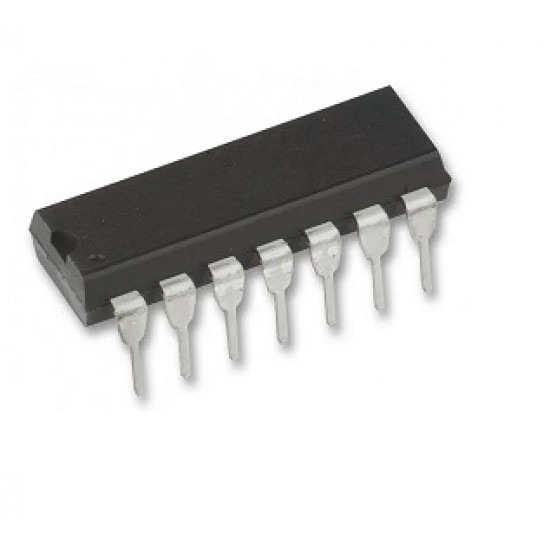

VFC110AP 4MHz HIGH-FREQUENCY VOLTAGE-TO-FREQUENCY CONVERTER IC Dip-14

Features of VFC110AP HIGH-FREQUENCY VOLTAGE-TO-FREQUENCY CONVERTER IC

• High Conversion Accuracy: Provides high linearity with typically ±0.01% nonlinearity error.


• Wide Frequency Range: Capable of generating frequencies from 0 Hz to 4 MHz, making it suitable for high-speed applications.


• Low Temperature Drift: Minimal temperature dependence, with a temperature coefficient of ±50 ppm/°C for frequency stability over temperature variations.


• High Input Impedance: Input impedance is greater than 100 MΩ, ensuring minimal loading on the signal source.


• Wide Input Voltage Range: Supports a wide range of input voltages, making it compatible with various signal levels.


• Single or Dual Power Supply Operation: Can operate with a single +15V supply or dual ±15V supply, providing flexibility in power configurations.


Specifications of VFC110AP HIGH-FREQUENCY VOLTAGE-TO-FREQUENCY CONVERTER IC

• Frequency Range: 0 Hz to 4 MHz.


• Nonlinearity Error: ±0.01% typical.


• Temperature Coefficient: ±50 ppm/°C (frequency stability over temperature).


• Power Dissipation: 175 m W typical at ±15V.


• Input Impedance: Greater than 100 MΩ.


• Output Format: Square wave output, TTL/CMOS compatible.


• Operating Temperature Range: 0°C to +70°C for commercial applications.


Package Includes

• 1 x VFC110AP HIGH-FREQUENCY VOLTAGE-TO-FREQUENCY CONVERTER IC
