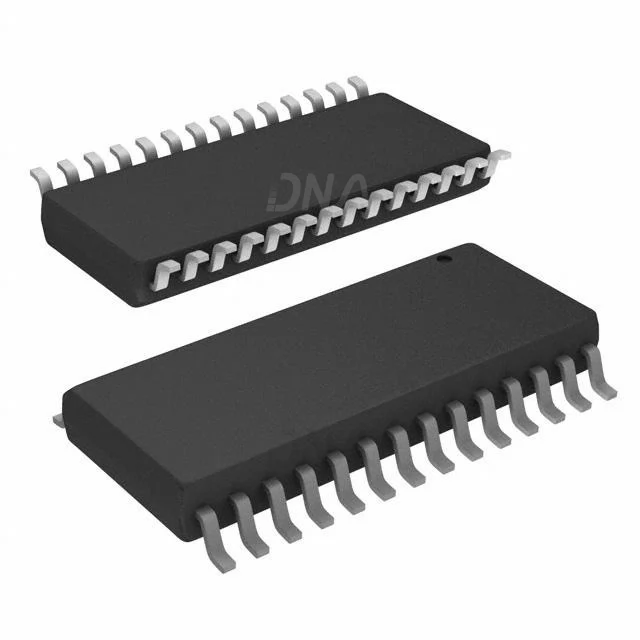

VNQ810P-E Quad channel high-side driver IC

VNQ810P-E Quad channel high-side driver IC

The VNQ810P-E is a quad HSD formed by assembling two VND810P-E chips in the same SO-28 package. The VNQ810P-E is a monolithic device made by using STMicroelectronics VIPower™ M0-3 technology, intended for driving any kind of load with one side connected to ground. Active VCCpin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table).Active current limitation combined with thermal shutdown and automatic restart protects the device against overload.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• Automotive Grade: compliance with AEC guidelines


• Very low standby current


• CMOS compatible input


• On-state open-load detection


• Off-state open-load detection


• Thermal shutdown protection and diagnosis


Specifications of VNQ810P-E Quad channel high-side driver IC

• Operating Voltage: 5.5V to 36V (nominal operation within the automotive voltage range).


• Maximum Load Current: Up to 7A per channel (limited by thermal performance).


• On-Resistance (Rds(on)): Typical 160 mΩ at 25°C.


• Operating Temperature Range: -40°C to +150°C, suitable for harsh automotive environments.


• PWM Operation: Operates up to 10 kHz for precision control of the output.

• Maximum Power Dissipation: The power dissipation depends on the application and cooling, but the IC is designed to handle significant power loads with adequate heatsinking.


• Diagnostics: Open-load detection (in ON and OFF states), short to ground, and short to VCC are available as diagnostic outputs.


Package Includes

• 1 x VNQ810P-E Quad channel high-side driver IC
