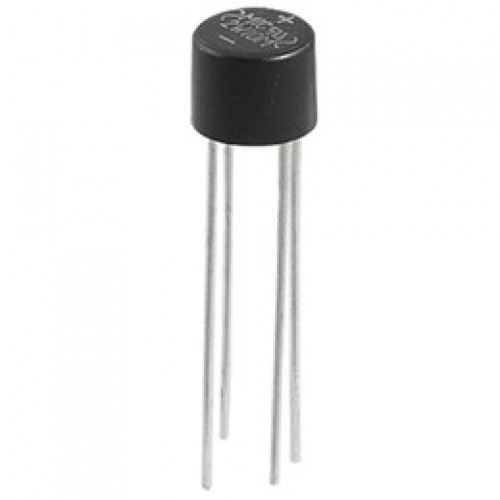

W10 Single Phase Silicon Bridge Rectifier


Write a review | 0 reviews

  • Stock: 100
  • SKU: 0660 | DAA374
  • Rs. 12.98 (inc GST)
    Rs.11.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

W10 Single Phase Silicon Bridge Rectifier

W10 Single Phase Silicon Bridge Rectifier

Features of W10 Single Phase Silicon Bridge Rectifier

  • Ideal for printed circuit board

  • Surge overload rating : 50 A peak

  • High case dielectric strength

  • High temperature soldering guaranteed : 250oC/10sec/0.375"(9.5mm) lead length at 5 lbs tension

  • Peak Repetitive Reverse Voltage VRRM 600 V

  • Maximum DC Blocking Voltage VDC 600 V

  • Maximum RMS Voltage VRMS 560 V

  • Operating Temperature Range TJ -55 to +125 oC

  • Storage Temperature TSTG -55 to +150 oC

Mechanical Features of W10 Single Phase Silicon Bridge Rectifier

  • Terminal : Plated leads solderable per MIL-STD 202E, method 208C

  • Case : UL-94 Class V-O recognized flame retardant epoxy

  • Polarity : Polarity symbol marked on body

  • Mounting position : Any

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
