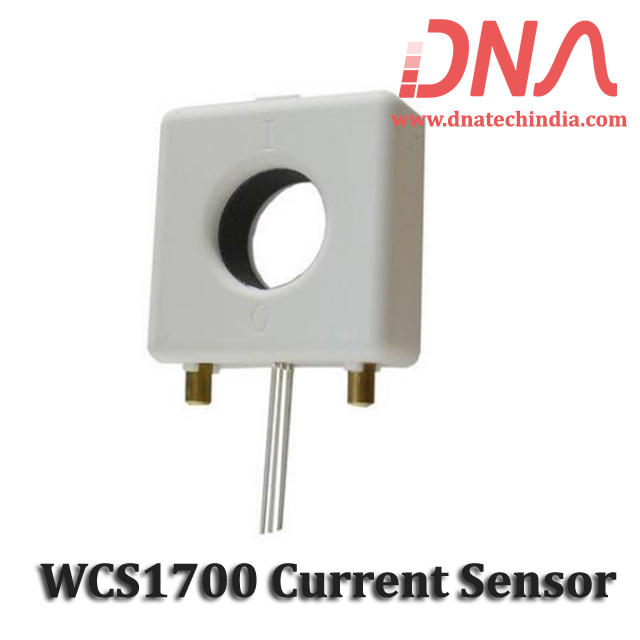

WCS1700 Hall Effect Linear Current Sensor

WCS1700 Current Sensor with 0 to 70 Ampere current sensing range and sensitivity of 33 mv/A.

Winson WCS1700 current sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems.

The unique package provides easy implementation without breaking original system and makes current sensing possible. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc…

The WCS1700 Current Sensor consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a diameter 9.0mm through hole. Users can use system’s own electric wire by pass it through this hole to measure passing current. This design allows system designers to monitor any current path without breaking or changing original system layout at all. Any current flowing through this hole will generate a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. The terminals of the conductive path are electrically isolated from the sensor leads. This allows the WCS1700 current sensor to be used in applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques and make system more competitive in cost.

DNA Solutions has a large collection of various types of Current and Voltage Sensors. Check our complete collection of Current and Voltage Sensor.

Features of  WCS1700 Current Sensor

• Diameter 9.0 mm conductor through hole

• Output voltage proportional to AC and DC current

• Wide sensing current range 0~70A at 5V voltage supply

• High sensitivity 33 mV/A

• Wide operating voltage range 3.0~12 V.

• Low operating current 3mA

• Isolation voltage 4000V

• Ratiometric output from supply voltage

• 23KHz Bandwidth

• WCS1700 Current Sensor Datasheet
