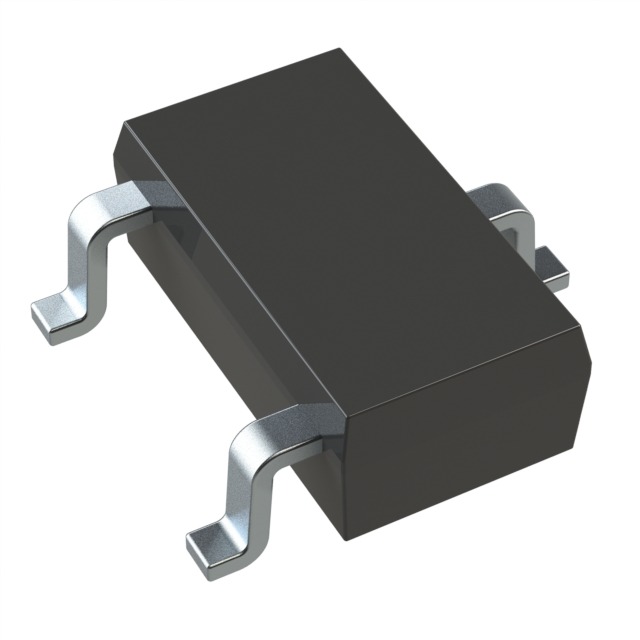

XC6206P332MR Voltage Regulator 3 Terminal IC

XC6206P332MR Voltage Regulator 3 Terminal IC

The XC6206P332MR  series are highly precise, low power consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter's foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SOT-23, SOT-89 and USP-6B packages are available

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• Maximum Output Current - : 200mA (3.0V type)

• Dropout Voltage - 250mV @ 100mA (3.0V type)

• Maximum Operating Voltage - 6.0V

• Output Voltage Range - : 1.2V ~ 5.0V (0.1V increments)

• Highly Accurate - :±2%@VOUT≧1.5V ,+30mV@VOUT<1.5V,(+1% @VOUT>2.0V)

• Low Power Consumption : : 1.0μA (TYP.)

• Low ESR Capacitor: : Ceramic capacitor compatible

• Protection - Current Limit Circuit Built-in

• Operating Ambient Temperature - : -40℃ ~ 85℃

• Packages - SOT-23 ,SOT-89,USP-6B

• Environmentally Friendly - EU RoHS Compliant, Pb Free

Applications of XC6206P332MR Voltage Regulator 3 Terminal IC

• Smart phones / Mobile phones

• Portable game consoles

• Digital still cameras / Camcorders

• Digital audio Equipments

• Reference voltage sources

• Multi-function power supplies

Package Includes

• 1 x XC6206P332MR Voltage Regulator 3 Terminal IC
