• XL4301 Step Down DC to DC Buck IC

Product Images are shown for illustrative purposes only and may differ from actual product.

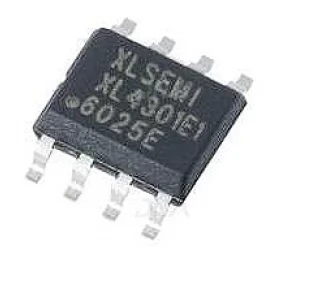

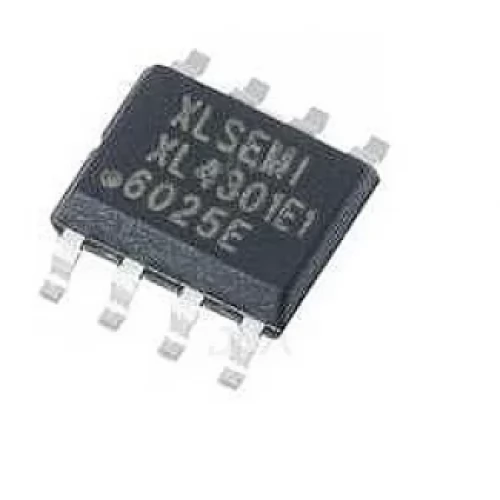

XL4301 Step Down DC to DC Buck IC

  • Stock: 80
  • Brand: XL Semi
  • SKU: 1671 | DAB690
  • Rs. 41.30 (inc GST)
    Rs.35.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

XL4301 DC to DC Buck Converter IC

XL4301 3 Ampere 180KHz 45 Volts Buck DC to DC Converter With Constant Current Loop

The XL4301 is a 180KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM Control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. An internal compensation block is built into minimize external component count. The XL4301 Step Down DC to DC Buck IC built in a simple, user-programmable output cable voltage drop compensation function.

DNA solutions, Nashik has various types of DC to DC Converter IC. Check out our complete collection of Voltage Regulator and Step up and Step Down IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of XL4301 Step Down DC to DC Buck

  • Operation Voltage from 8 Volts to 40 Volts
  • Adjust Vout from 1.25 Volts  to Vin-2 Volts
  • Minimum Drop Out 0.3 Volts
  • Fixed 180KHz Switching Frequency
  • Maximum 2.5 - 3 Ampere Switching Current
  • Internal Optimize Power MOSFET
  • Excellent line and load regulation
  • With output constant current loop
  • Built in thermal shutdown function
  • Built in current limit function
  • Built in output cable compensation
  • Recommend output power less than 13W
  • SOP8-EP (Exposed PAD) package

Applications of XL4301 Step Down DC to DC Buck

  • Car Charger
  • Battery Charger
  • LCD Monitor and LCD TV
  • Portable instrument power supply
  • Telecom / Networking Equipment
  • Buck constant current driver
